Euler's Formula For Planar Graphs

Euler's Formula For Planar Graphs. You can only use that if you drew a graph to a plane without it's edges crossed. A simple graph is an undirected, unweighted graph with no self loops that has at most one edge between two points.

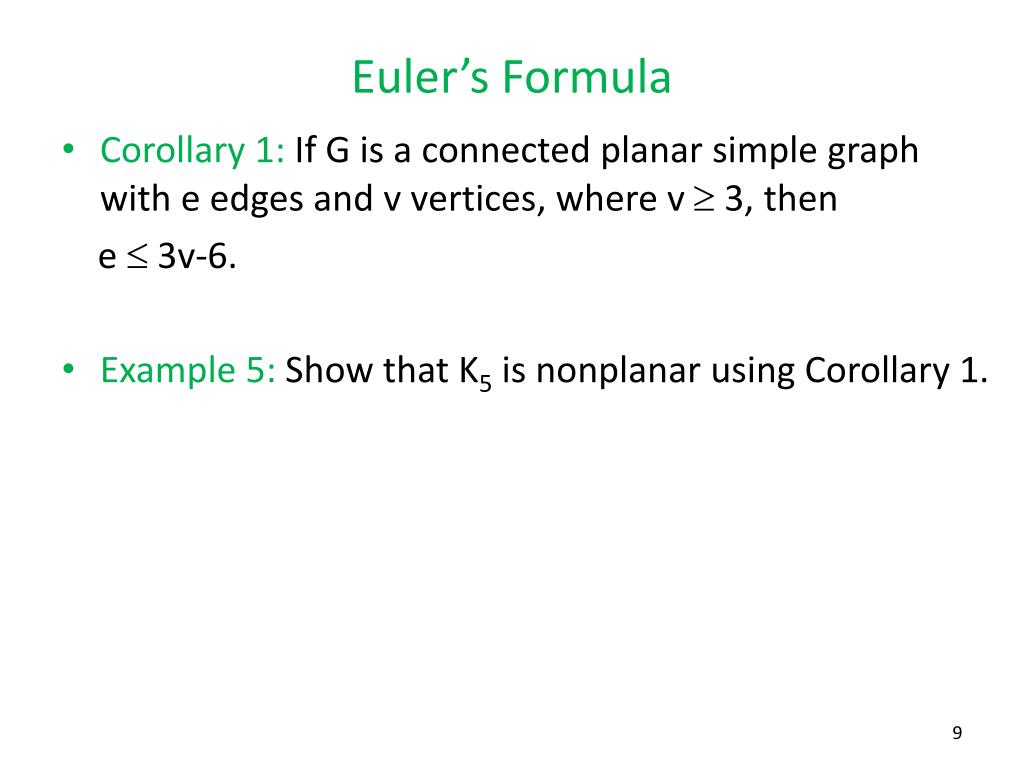

PPT Chapter 10.7 Planar Graphs PowerPoint Presentation ID3943571 from www.slideserve.com

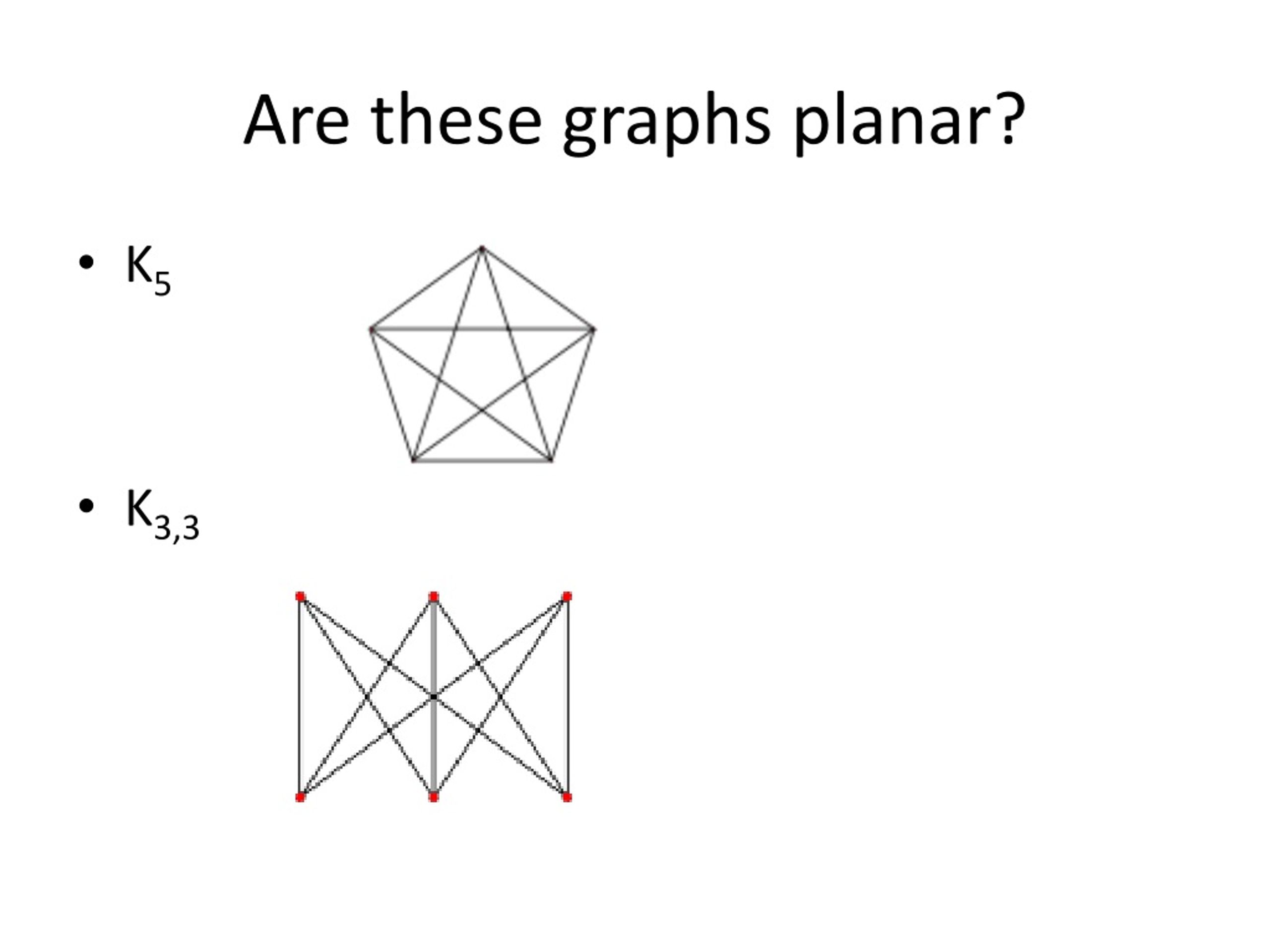

Euler's formula when we draw a planar graph, it divides the plane up into regions. You can use the following inequalities for checking if it is planar graph or not: All planar graphs satisfy this mysterious equation:

Source: www.slideserve.com

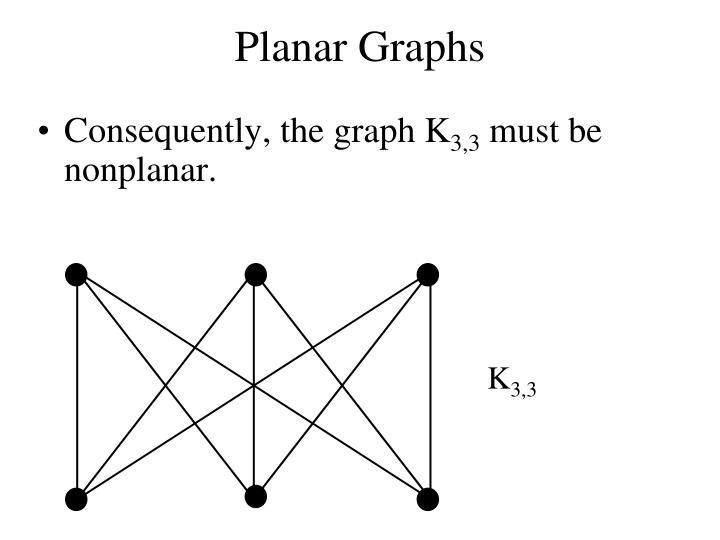

If your graph is disconnected, calculate euler's formula for each connected part separately. Three inside and the exterior.

Source: medium.com

The path bounding each region starts and ends at the same vertex and uses each edge only once. Each region is bounded by a simple cycle of the graph:

Source: twitter.com

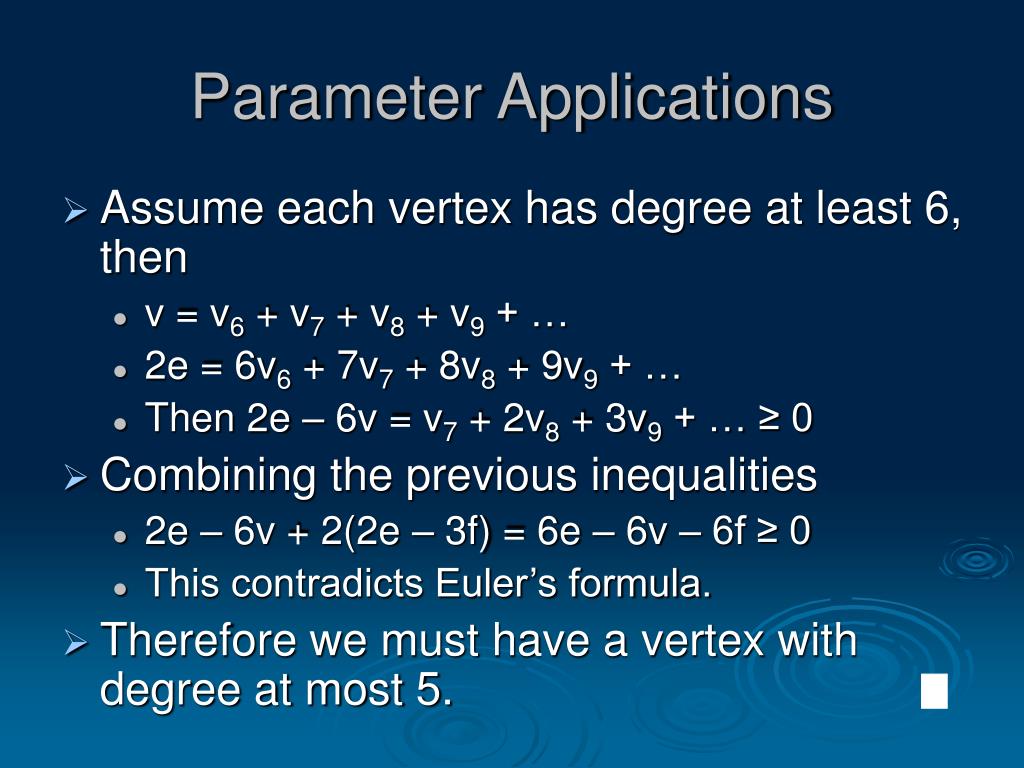

A face is a region between edges of a plane graph that doesn't have any edges in it. There are many proofs had published about this formula.

Source: www.slideserve.com

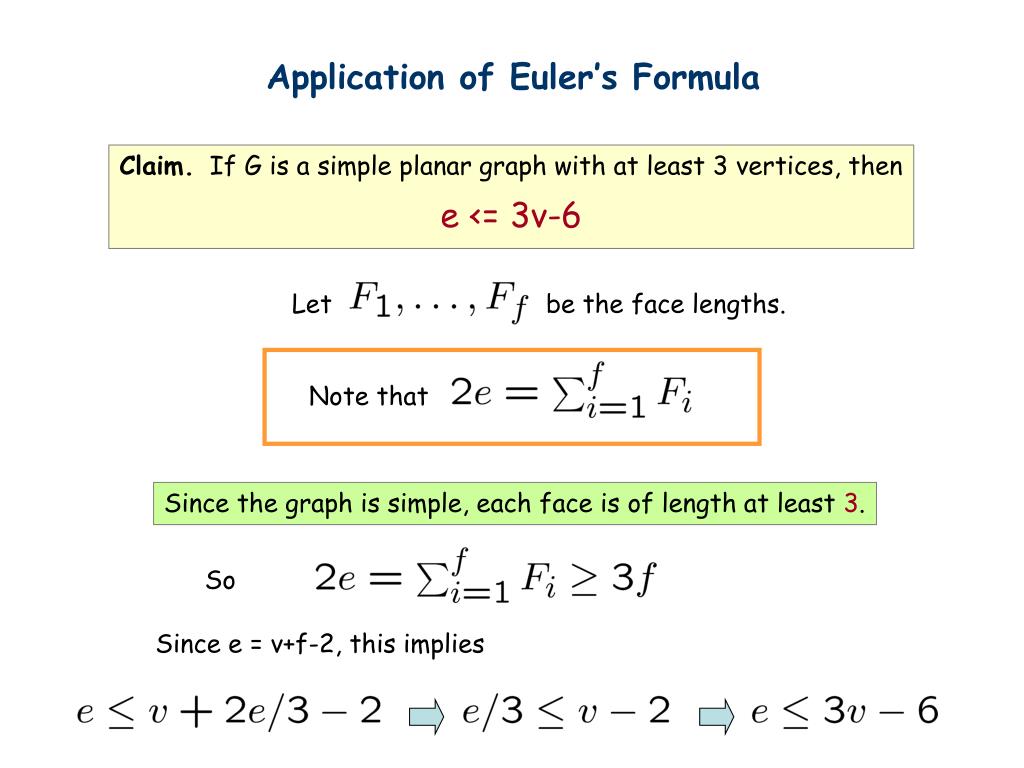

The aim of this paper is to derive on the basis of the euler's formula several analytical relations which hold for certain classes of. In that case, you can use it to determine whether or not it is a planar graph.

Source: amsi.org.au

Euler's formula states that if a finite, connected, planar graph is drawn in the plane without any edge intersections, and v is the number of vertices, e is the number of edges and f is the number of faces (regions bounded by edges, including the outer, infinitely large region), then + = as an illustration, in the butterfly graph given above, v = 5, e = 6 and f = 3. E goes down by 1.

Source: www.slideserve.com

One of the example is cauchy’s proof, using stereographic projection to map a. Now consider how many edges surround each face.

Source: www.youtube.com

Euler’s formula is a linear relation between the three numbers. Euler's formula states that if a finite, connected, planar graph is drawn in the plane without any edge intersections, and v is the number of vertices, e is the number of edges and f is the number of faces (regions bounded by edges, including the outer, infinitely large region), then + = as an illustration, in the butterfly graph given above, v = 5, e = 6 and f = 3.

Source: www.slideserve.com

The number of vertices in a rectangle is _____. 5−10+f = 2, 5 − 10 + f = 2, which says that if the graph is drawn without any edges crossing, there would be f = 7 f = 7 faces.

Source: formulae2020jakarta.blogspot.com

A simple graph is an undirected, unweighted graph with no self loops that has at most one edge between two points. E goes down by 1.

If These Numbers Are Combined In The Euler Formula, We Get _____.

Leonhard euler (1707—1783) came up with a formula that holds true for any planar embedding of a connected graph. This answer will always be 2 for any planar graph! Three inside and the exterior.

Now Consider How Many Edges Surround Each Face.

Each region is bounded by a simple cycle of the graph: A single connected component) states that v − e + f = 2. There are many proofs had published about this formula.

The Euler Characteristic Of Any Plane Connected Graph G Is 2.

In your case, you drew k 4 with two edges crossing, that's why it didn't work. A simple graph is an undirected, unweighted graph with no self loops that has at most one edge between two points. To prove this, we will want to somehow capture the idea of building up more complicated graphs from simpler ones.

When We Delete An Edge:

E goes down by 1. So assume that k5 k 5 is planar. The number of vertices in a rectangle is _____.

Euler’s Formula For Connected Planar Graph States That Any Connected Planar Graph Has Euler Characteristic 2.

Keep removing one edge at a time from the graph while keeping it connected, until we obtain a spanning tree. This is easily proved by induction on the number of faces determined by g, starting with a tree as the base case. Euler's formula for connected planar graphs (i.e.
